Furtun WGG pentru industria miniera
Acest produs are certificat de Oficiul pentru Minerit Superior nr B/1312/II/2008 Åi nr. B/1315/II/2008
Furtun WGG pentru industria miniera este obust si rezistent la conditii grele de munca. Furtunul este utilizat in industria miniera, alocate pentru fluxul de apa, aer comprimat si amestecuri ale acestora cu nisip sau cu alte substante solide.

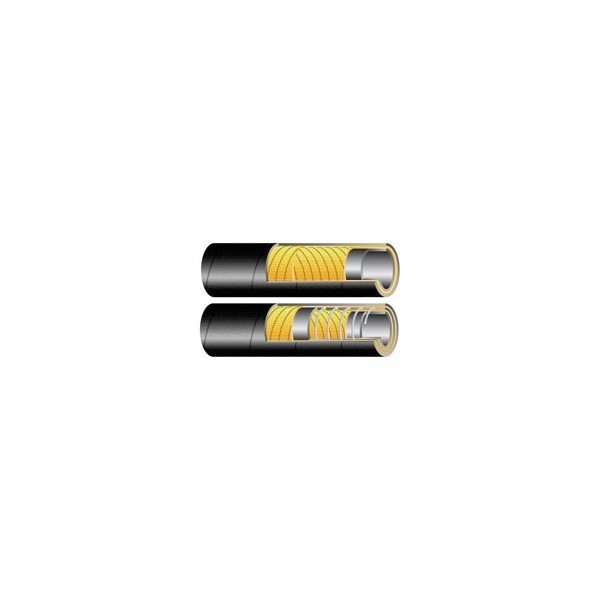

– Aceste furtunuri sunt impartite in doua tipuri: Z – furtunuri ordinare, S furtunuri protejate cu bobina de sarma interna
– Ambele tipuri indeplinesc aceleasi cerinte
– Ambele tipuri pot fi fabricate ca furtunuri rezistente la abraziune (tuburi rezistente la abraziune). aceste furtunuri primesc marcaj suplimentar (SC)
– Temperatura de lucru:. De la -30 ° C pana la +60 ° C
– Tub: negru
– Armatura: poliamida, aramide1
– Acoperire: ambele tipuri sunt fabricate cu invelis din compusi de cauciuc ignifug, de ardere lenta
| Diametru interior mm |
Grosime perete Z/S mm |
Presiune de lucru. / Presiune de rupere MPa |
Tipul | Lungime maxima m |
||||
|
ZN-05/FAGUMIT-1/
|
||||||||
| Type 10 | Type 16 | Type 30 | Type 10 | Type 16 | Type 30 | |||
| 6,01 | 3,5 | 3,5 | – | 1,0/3,0 | 1,6/5,0 | – | Z | 50,0 |
| 8,0 | 5,1 | – | 5,1 | 1,0/3,0 | – | 3,0/7,5 | Z | 20,0 |
| 10,0 | 5,1 | – | 5,1 | 1,0/3,0 | – | 3,0/7,5 | Z | 20,0 |
| 12,5 | 5,1 | – | 5,1 | 1,0/3,0 | – | 3,0/7,5 | Z | 20,0 |
| 16,0 | 5,3 | – | 5,3 | 1,0/3,0 | – | 3,0/7,5 | Z | 40,0 |
| 20,0 | 5,3/6,5 | 5,3/6,5 | 5,3/6,5 | 1,0/3,0 | 1,6/5,0 | 3,0/7,5 | Z/S | 40,0/10,0 |
| 25,0 | 5,3/6,5 | 5,3/6,5 | 5,3/6,5 | 1,0/3,0 | 1,6/5,0 | 3,0/7,5 | Z/S | 40,0/10,0 |
| 31,5 | 5,3/7,0 | – | 6,5/9,0 | 1,0/3,0 | – | 3,0/7,5 | Z/S | 40,0/10,0 |
| 40,0 | 5,5/7,0 | – | 6,5/9,0 | 1,0/3,0 | – | 3,0/7,5 | Z/S | 20,0/10,0 |
| 50,0 | 5,5/8,5 | 6,5/9,0 | 6,5/9,0 | 1,0/3,0 | 1,6/5,0 | 3,0/7,5 | Z/S | 20,0/10,0 |
| 63,0 | 7,0/9,0 | – | 8,5/10,5 | 1,0/3,0 | – | 3,0/7,5 | Z/S | 10,0 |
| 75,0 | 7,0/9,5 | – | 9,5/11,5 | 1,0/3,0 | – | 3,0/7,5 | Z/S | 10,0 |
| 80,0 | 7,0/9,5 | – | 9,5/11,5 | 1,0/3,0 | – | 3,0/6,0 | Z/S | 10,0 |
| 100,0 | 7,0/10,0 | 8,5/11,0 | 9,5/12,0 | 1,0/3,0 | 1,6/5,0 | 3,0/6,0 | Z/S | 10,0 |
| 110,0 | 7,0/10,0 | – | 9,5/13,0 | 1,0/3,0 | – | 3,0/5,0 | Z/S | 10,0 |
| 125,0 | 8,5/10,5 | – | 10,5/13,0 | 1,0/3,0 | – | 3,0/5,0 | Z/S | 10,0 |
| 150,0 | 8,5/12,0 | – | 10,5/14,0 | 1,0/3,0 | – | 3,0/5,0 | Z/S | 10,0 |
